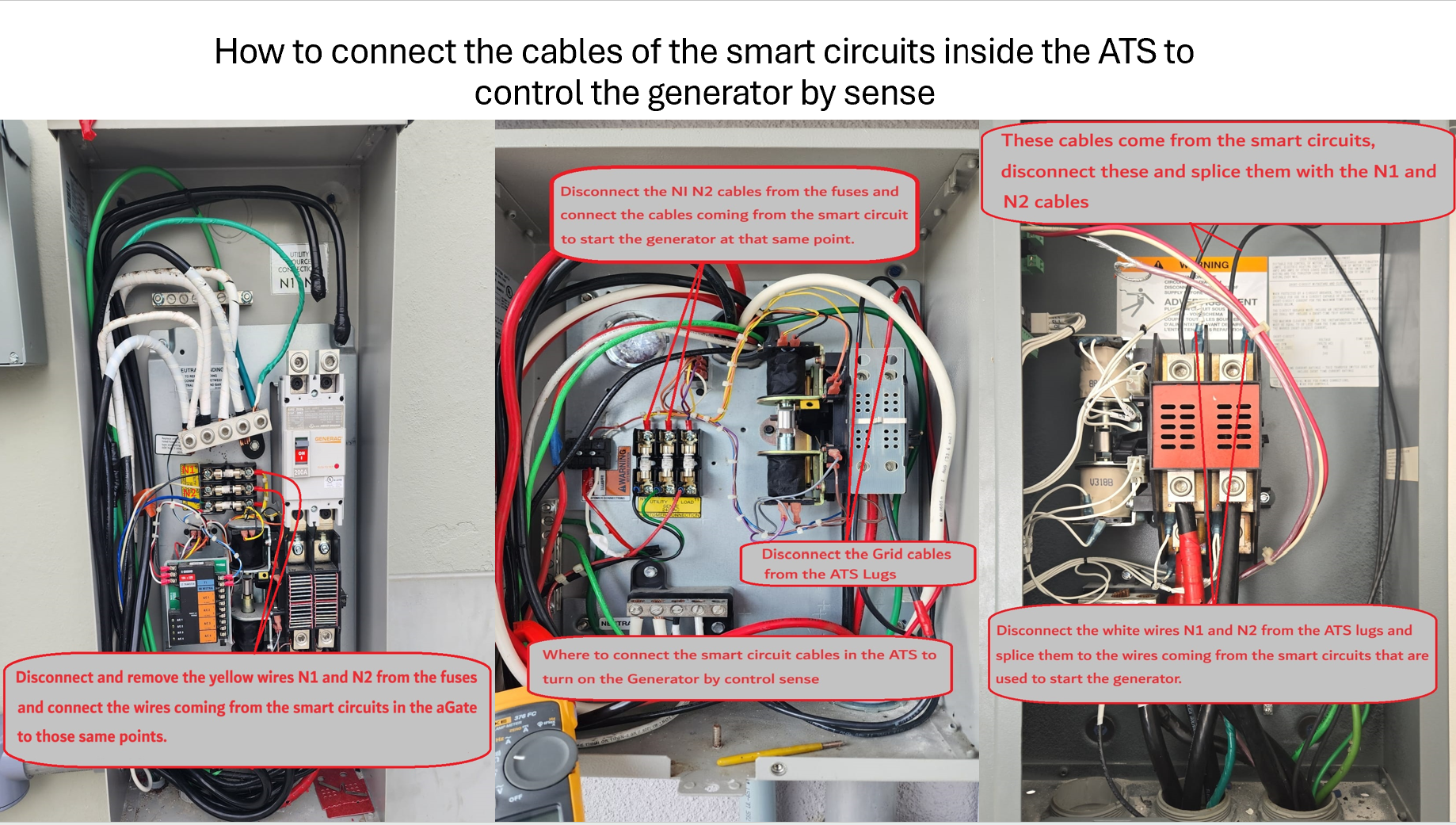

How to connect smart circuits cables in the ATS to control Voltage Sense
This troubleshooting procedure applies in the following cases:
ATS (Automatic Transfer Switch) transfer issues:
- The ATS is not switching correctly.
Generator relay alarm:
- The system detects a fault with the generator relay.
Switching from ATS to voltage sense:
- The ATS needs to be removed, and the system must be modified to operate with a voltage sensor.
Each situation requires a specific approach to ensure proper operation and system continuity.
